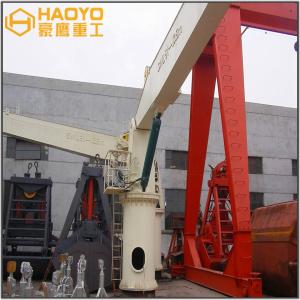

Offshore Pedestal Fixed Boom Lifting Hydraulic Crane Marine Ship Deck Crane

Brand Name : HAOYO

Model Number : HAOYO

Certification : BV,CCS,NK,DNV,ABS,LR

Place of Origin : China

MOQ : 1 unit

Payment Terms : T/T,L/C

Supply Ability : 300 UNITS

Delivery Time : 90days

Packaging Details : NUDE

Price : 20000-30000USD/Set

Use Situation : New

Operstion formal : Ground operation

Shipment Parameters : According to The Export Standards

Specification : According to The Export Standards

Trademark : HAOYO

Origin : Shanghai

Sling Type : Wire Rope

Type of crane : fixed boom marine crane

Contact Now

Offshore Pedestal Fixed Boom Lifting Hydraulic Crane Marine Ship Deck Crane

Stiff bow free booms with the dexterity for accurate, safe, and efficient material
handling. Stiff boom cranes are typically used in dock, on fixed installations and
in harbor conditions.HAOYO stiff boom cranes are suitable equipped on the deck
for bulk cargo ships or offshore with enough free space.These cranes can also
be further customized for use in these most demanding of work environments.
Speak to one of our sales associates for a solution fully customized to your needs.

The cranes are available in the range from 140–30000 kNm lifting moment and
are supplied according to customer requirements. The most notable features
include: Stiff bow free booms with the dexterity for accurate, safe, and efficient
material handling. Stiff boom cranes are typically used in dock, on fixed installations
and in harbor conditions.

Drawing of Offshore Pedestal Fixed Boom Lifting Hydraulic Crane

Technical Parameters

Crane Type	Outreach(m)	Lifting capacity(kg)	Lifting moment(kNm)	Total Moment (kNm)	Pedestal Outer Diameter (mm)	Dead Weight (kg)
HC200	6-16	3.5-0.9	144-210	270	885	2.7-3.2
HC400	6-16	5.6-1.7	288-336	424	885	3.2-3.7
HC600	6-20	10-2.3	460-600	737	1095	4.4-5.5
HC 900	6-20	14.2-3.2	640-852	1039	1325	5.9-7.0
HC1200	6-24	19-3.5	840-1140	1409	1490	7.8-10.2
HC1500	7-24	20.3-4.6	1104-1421	1765	1490	9.2-11.3
HC1800	7-24	25.6-5.4	1296-1792	2202	1770	11.4-14.1
HC3000	21	12.5	2625	3750	1775	24.8
HCK220	27,5	20,0	2200	4000	1800	15.0
HCK300	30.0	25.0	3000	5000	2065	17.5
HCK400	32.0	30.0	4000	6300	2050	20.0
HCK500	35.0	35.0	5000	8000	2240	25.0
HCK800	40.0	50.0	8000	11500	2271	45.0

More Products(Offshore Pedestal Fixed Boom Lifting Hydraulic Crane)

Processing Flow(Offshore Pedestal Fixed Boom Lifting Hydraulic Crane)

Certifications

Packaging&Delivery(Offshore Pedestal Fixed Boom Lifting Hydraulic Crane)

Shipping details
♦ check all the items and packaged well before loading.
♦ You can check loading or send picture to you.
♦ After shipping make documents for you,like B/L,packing list,voice according
to your requirements.
